Hisense · VRF

Hi-FLEXi S heat recovery · 22.4–50.0 kW

Outdoor unit with heat recovery. Cools one part of the building and heats another at the same time.

We quote the price for your project, with selection and installation included.

Size	8 HP	10 HP	12 HP	14 HP	16 HP	18 HP
Model	AVWT-76FKFSA	AVWT-96FKFSA	AVWT-114FKFSA	AVWT-136FKFSA	AVWT-154FKFSA	AVWT-170FKFSA
Cooling capacity, kW	22.4	28.0	33.5	40.0	45.0	50.0
Cooling power input, kW	4.87	6.75	8.09	10.26	12.16	14.04
EER	4.60	4.15	4.14	3.90	3.70	3.56
Heating capacity, max / nominal, kW	25.0 / 22.4	31.5 / 28.0	37.5 / 33.5	45.0 / 40.0	50.0 / 45.0	56.0 / 50.0
Heating power input, max / nominal, kW	5.20 / 4.36	6.77 / 5.63	9.17 / 7.70	10.82 / 8.89	12.14 / 10.32	14.74 / 12.02
COP, max	4.81	4.65	4.09	4.16	4.12	3.80
Airflow, m³/min	183	183	183	200	200	200
Fans	1	1	1	2	2	2
External static pressure, Pa	110	110	110	110	110	110
Sound pressure, dB(A)	59	60	62	62	62	62

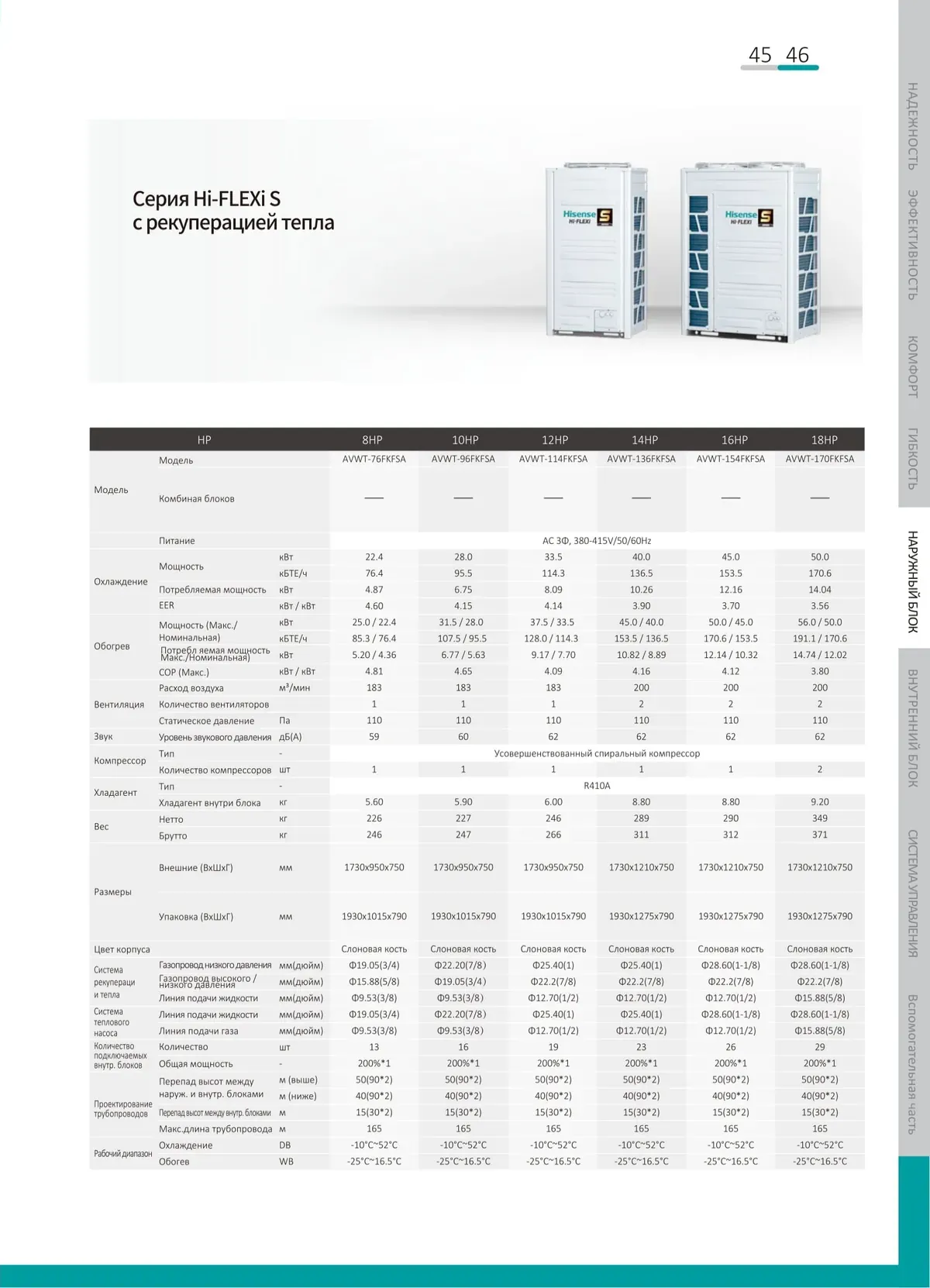

Power supply: AC 3-phase, 380–415 V, 50/60 Hz. Figures from the Hisense catalogue; the full data sheet is below.
